| Geotextile Type: | Woven Geotextiles | Color: | Black |
|---|---|---|---|
| Material: | 100% Polypropylene | Width: | Can Be Custom-made |
| Length: | Can Be Custom-made | Weight: | 100--800g/M2 |
| Application: | Coastal Protection | Size: | Can Be Custom-made |
| Sample: | Free Stock Sample | ||
| High Light: | 120/120KN Strengh Dewatering Geotextile Tubes,PP Anti UV Dewatering Geotextile Tubes,Anti UV PP Dewatering Filter Bag | ||
120/120KN strengh Anti UV PP Dewatering Geotextile Tubes For Bank Erosion Protection
What is in a geotextile tube?
Geotextile Tube is one of the most effective components that are most usually used in protective structure of waterproof erosion. Soft mattress is covered to the places where water flows to reduce the impact energy of water flow and protect soil particles from being flown away by water flow by means of its filtration function, thus, ensuring the stability of soil mass.
How do geotextile tubes work?

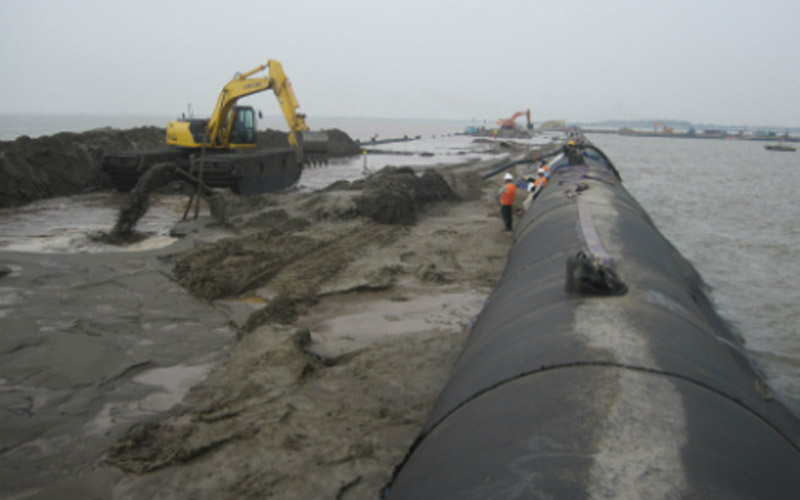

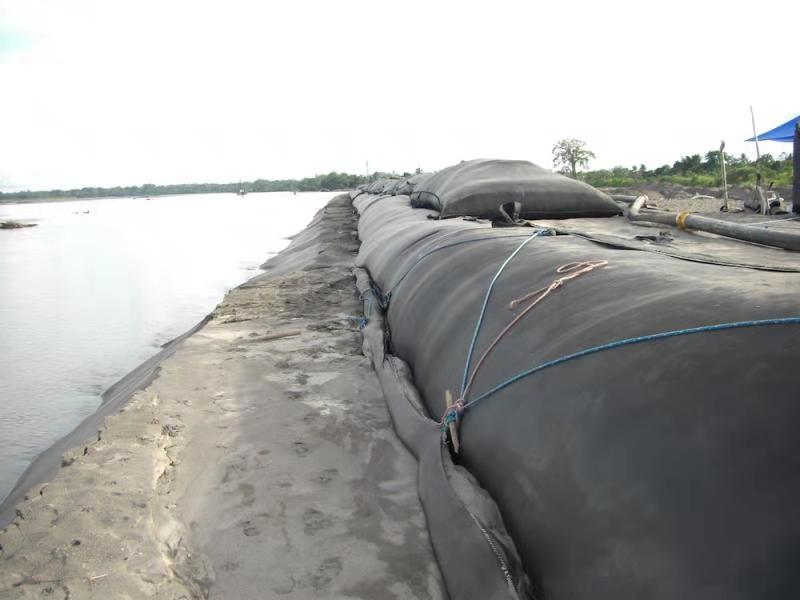

As waves crash on to the shoreline, they hit the tube first, limiting the exposure to beaches and dunes. Geotextile tubes help areas retain sand/shorelines and work to prevent further erosion or loss in the area.
What are geotextiles made out of?

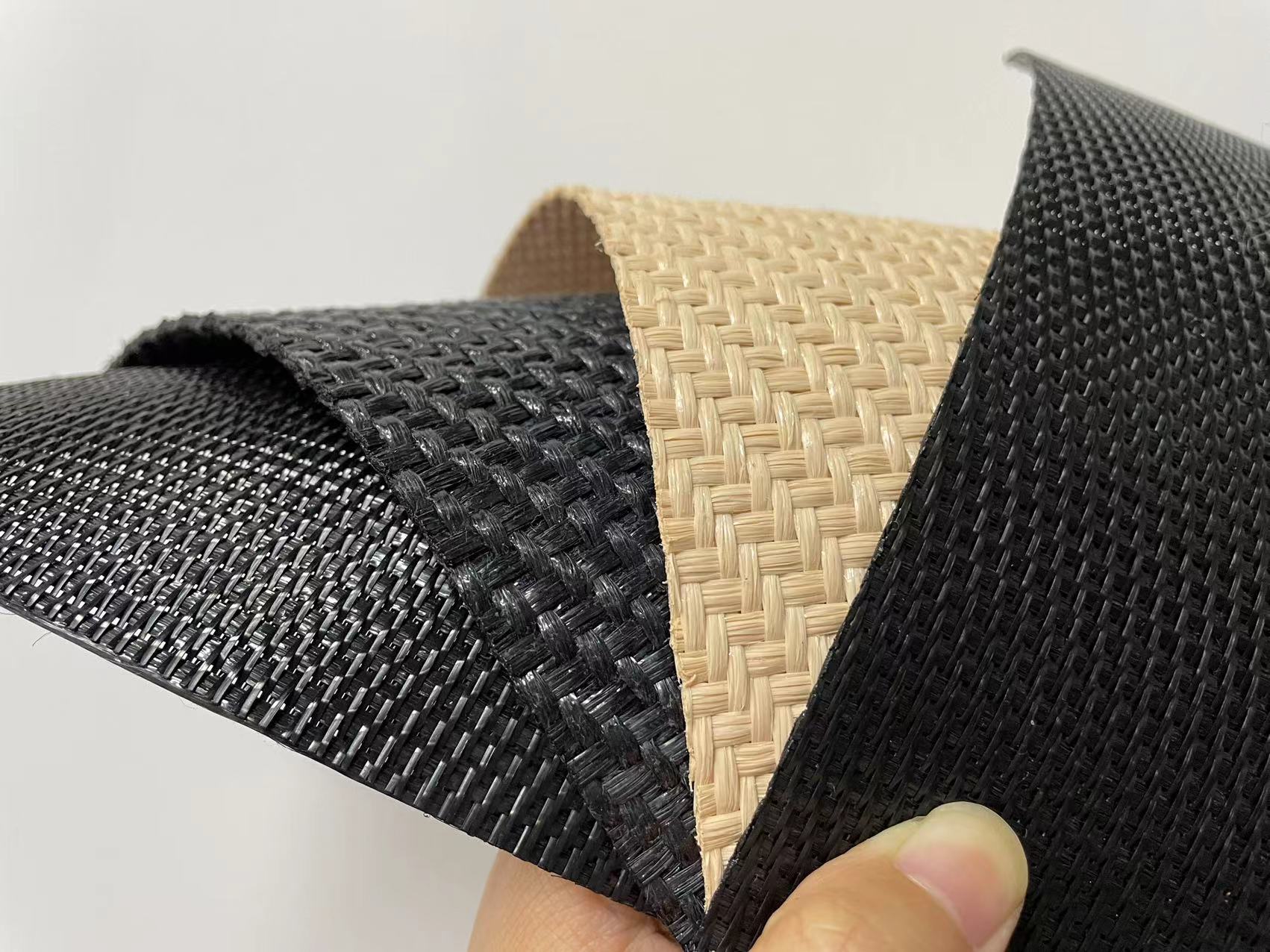

In order to meet different tensile strength, durability and environmental requirements, the product is made of high-strength polypropylene woven fabric. Acid and alkali resistance is not afraid of sea water corrosion, aging resistance and long service life, the diameter of tubular geotextile tube container can be customized according to requirements, the conventional size is generally between 1.5 meters and 5m.
Adopt six needle thread, strong and high not afraid of bursting bag, install handle, convenient construction.
If required, the filling ports can be customized to install flanges
PP woven geotextile specs.
| Item | Unit | Technical Parameters | |||
| HT380 | HT750 | HT1000 | |||
Breaking strength | MD | KN/m ≧ | 85 | 130 | 220 |
Breaking strength | CD | KN/m ≧ | 85 | 130 | 220 |
Elongation of break | MD | % ≦ | 12 | 12 | 12 |
Elongation of break | CD | % ≦ | 10 | 8 | 8 |
| Seam Tensile strength | KN/m | 90 | 100 | 170 | |
| Bursting Strength(CBR) | KN≧ | 10 | 15 | 20 | |
| Equivalent opening size(O90) | mm | 0.45 | 0.4/0.28 | 0.45 | |
| Permeability(Q50) | L/m2/s≧ | 42 | 14 | 18 | |
